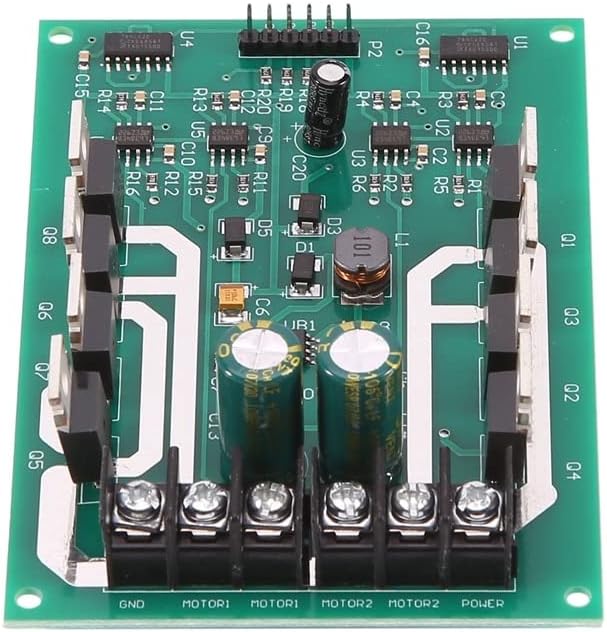

Dual DC Motor Driver Board H Bridge PWM DC Motor Drive Module 10A| | -

We offer for large quantity. Welcome to contact with us! Dual DC Motor Driver Board H-Bridge PWM DC Motor Drive Module 10AParking brake: DIR = X PWM = 0 (X is an arbitrary state). Motor forward: DIR = 1 PWM = PWMThe drive performance of these non-L298 motor driver chip can be compared. The driver focus on current and efficiency, effectively motor power and battery life.Can withstand high current overload, the maximum current up to 30AThis drive also has a brake function can be quickly stopped the motor, brake quickly, braking obvious, easy to implement this featureThe drive uses the full two half-bridge driver chip + low resistance N-channel MOSFET components.Completer two half-bridge driver chip reliable drive mode, the MOSFET switching losses to a minimum. Improve power utilization.This drive is superior integrated low power chip solution and the other half-bridge power margin in the coordinated combination of programs and complex issues and complementary drive problemsN-channel MOSFET IRF3205 MOSFET, use two dedicated half-bridge driver chip on the top tube using the boostrap capacitor, so that the tube has enough drive voltage of the MOSFET channel can be opened quickly, improve motor acceleration curvature, but also quickly for the motor brake. This allows the trolley can quickly start can quickly kill the car.The driver can operate at 0-99% of the duty cycle of the PWM modulation, the motor driving voltage can be obtained sufficiently.Motor reversal: DIR = 0 PWM = PWMPOWER connected to the positive power supply, GND power supply is negative. Two motors were connected MOTOR1, MOTOR2Motor and power connectionsUse: Freescale smart car contest Undergraduate Electronic Design Contest variety of DC motor control circuitRated Current: 10ARated voltage: 3v-36v (can be customized according to the user)Peak current: 30AColour: GreenMaterial: PCBSize: 108mm x 70m
